/v1/authorizations/prepare

POST /v1/authorizations/prepare

The prepare interface is used to prepare the contract information. This interface can be used in the following cases:

  • For subscription scenarios, including monthly or seasonal or yearly, the merchant can use this interface to prepare the contract information for the agreement payment authorization,

Message structure

A message consists of a header and body. The following sections focus on the body structure.

For the header structure, see:

Request

Property

Data type

Required

Description

scopes

String

Yes

Indicates which scope is to be used to obtain the access token. Possible values are:

  • AGREEMENT_PAY: is the agreement pay payment scenario.

Max. length: 16 characters.

extendInfoString

Yes

The extend information.

Max. length: 4096 characters.

e.g.

{\"language\":\"en-US\",\"contractDesc\":\"agreement payment description. \"}

Response

Property

Data type

Required

Description

result

Result

Yes

The request result, which contains information related to the request result, such as status and error codes.

authUrl

String

No

An authUrl can be used to call the my.call("qicardSignContract").

When authorization application is successful [result.resultStatus == S], the merchant might use authUrl to request for user's authorization with my.call("qicardSignContract").

Max. length: 256 characters.

Result process logic

In the response, the result.resultStatus field indicates the result of processing a request. The following table describes each result status:

Result status

Description

S

The authorization request is successful.

The corresponding result.resultCode is SUCCESS and the result.resultMessage is SUCCESS.

U

The status of the authorization request is unknown.

The corresponding result.resultCode is UNKNOWN_EXCEPTION and result.resultMessage is "An API calling is failed, which is caused by unknown reasons.".

For details, see the Common error codes section.

F

The authorization request is failed.

The corresponding result.resultCode and result.resultMessage are various based on different situations. For details, see the following Error codes section.

Error codes

Error codes are usually classified into the following categories:

  • Common error codes are common for all mini program OpenAPIs in V1.
  • API-specific error codes are listed in the following table.

Error code

Result status

Error message

Further action

INVALID_SCOPE

F

The scope is invalid.

Use a valid scope such as  AGREEMENT_PAY

PARAM_ILLEGAL

F

Illegal parameters. For example, non-numeric input, invalid date.


Check and verify whether the request fields (including the header fields and body fields) of the current API are correct and valid.

Sample

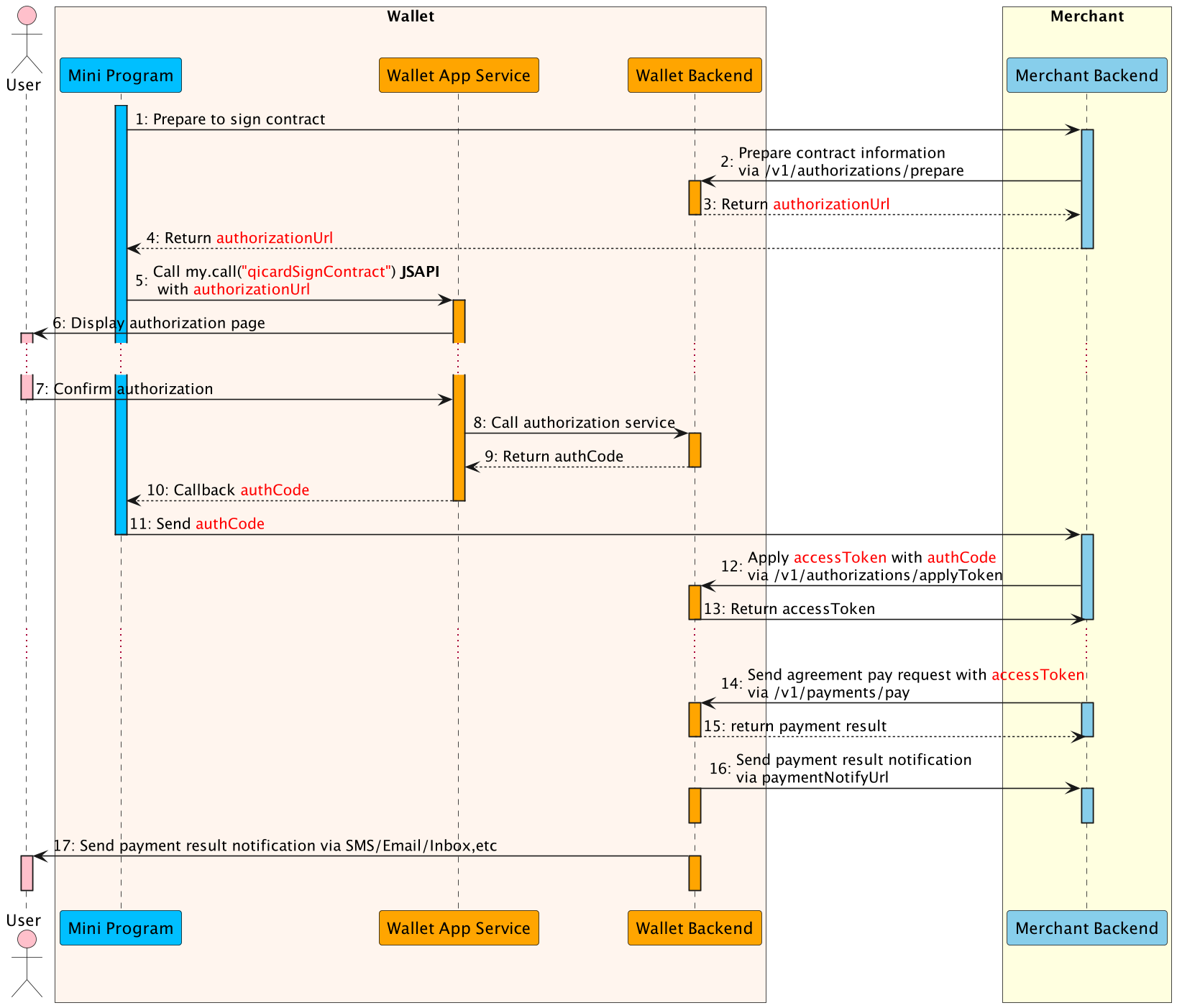

The data flow to prepare the contract information is illustrated as below:


  1. The Mini Program calls merchant backend to prepare the contract.
  2. The merchant backend calls this prepare API with contract information to prepare the contract.
  3. The E-Wallet backend returns authorization information to the merchant backend, such as authorizationUrl.
  4. The merchant backend passes the authorization information to the Mini Program.
  5. The Mini Program calls the my.call("qicardSignContract") JSAPI with authorizationUrl to conduct the authorization.
  6. The E-Wallet App Service displays the authorization page with contract information provided in Step 2.
  7. The user confirms the authorization agreement pay  in the authorization page.
  8. The E-Wallet App Service calls authorization service and execute the authorization process.
  9. When the authorization reaches the final status, the E-wallet backend returns the authCode to the Mini Program (Step 10).
  10. The Mini Program sends the authCode merchant backend.
  11. The merchant backend calls this applyToken API with authCode to apply the accessToken(Step 12).
  12. The E-Wallet backend returns accessToken information to the merchant backend, such as accessToken, refreshToken, etc.
  13. The merchant backend calls this payment API with accessToken to deduct money from user's balance silently without user operation(Step 14).
  14. The E-wallet backend returns the payment result to the merchant backend instantly(Step 15).
  15. Also the E-wallet backend notifies the merchant backend of the payment result with paymentNotifyUrl provided in Step 14(Step 16).
  16. Finally, E-wallet backend notifies the user of the payment result via SMS/Email/Inbox message (Step 17).

Request

copy
{
    "scopes": "AGREEMENT_PAY",
    "extendInfo": "{\"language\":\"en-US\",\"contractDesc\":\"agreement payment description.\"}"
}
  • scopes:  is AGREEMENT_PAY .
  • extendInfo: includes keys as JSON format,
    • language: is en-US or ar-IQ
    • contractDesc: is the contract information.

Response

copy
{
    "result": {
        "resultCode": "SUCCESS",
        "resultStatus": "S",
        "resultMessage": "success"
    },
    "authUrl": "https://xxxxx.wallet.iq?authId=xxxxx"
}
  • result.resultStatus==S: shows that the application is successful.
  • authUrl: shows the authorization url for display authorization page.

Related links

my.call("qicardSignContract")
