/v1/payments/cancel

POST /v1/payments/cancel

The cancel API is used to cancel a payment when the payment result does not return for a long time. You can also use the API to cancel a payment authorization after the authorization is completed.

To cancel a payment, you need to provide one of the following parameters:

  • paymentId: The original payment ID of the payment request to be canceled. It is generated by Alipay when a merchant initiates the original payment.
  • paymentRequestId: The original paymentRequestId of the payment request to be canceled.

Note:

1) After merchant initiated capture, void, refund for a payment, it is not allowed to initiate a cancel.

Note: All monetary values in the fields of request and response in their smallest currency units, and for IQD, the smallest unit is fils. Thus, if a transaction amount is 150 IQD, the value will be gaven as 150000.

Message structure

A message consists of a header and body. The following sections are focused on the body structure. For the header structure, see：

Request

Property

Data Type

Required

Description

Example

paymentId


String

No

The unique ID that is assigned by the wallet to identify a payment.

Max. length: 64 characters.

"2023120611121280010016600090000xxxx"

paymentRequestId

String

No

The unique ID is assigned by a merchant to identify a payment request.

Max. length: 64 characters.

"2023112719074101000700000077771xxxx"

extendInfo

String

No

The extension information that wallets and merchants want to describe. The format shoud be JSON format.

Max. length: 2048 characters.

"extendInfo: This is additional information"

Response

Property

Data Type

Required

Description

Example

result

Result

Yes

The request result, which contains information such as result status and error codes.

{

   "resultCode": "SUCCESS",

   "resultStatus": "S",

   "resultMessage": "Success."

 }

paymentId

String

No

The unique ID is assigned by the wallet to identify a payment.

Max. length: 64 characters.

"2023120611121280010016600090000xxxx"

paymentRequestId

String

No

The unique ID is assigned by a merchant to identify a payment request.

Max. length: 64 characters.

"2023112719074101000700000077771xxxx"

cancelTime

Datetime

No

The actual time when the payment cancellation process is completed. This property is returned only when the cancellation succeeds. The value follows the ISO 8601 standard.

"2023-01-08T12:12:12+08:00"

Result process logic

In the response, the result.resultStatus field indicates the result of processing a request. The following table describes each result status:

resultStatus

Decription

S

It means that the cancellation is successful.

The corresponding result.resultCode is "SUCCESS", and the

result.resultMessage is "Success.".

U

It means that the status of the cancellation result is unknown.

The corresponding result.resultCode is UNKNOWN_EXCEPTION, and

result.resultMessage  is "An API calling is failed, which is caused by unknown reasons". For details, see the Common error codes section.

F

It means that the cancellation fails.

The corresponding result.resultCode  and

result.resultMessage may vary based on different situations. For details, see the Error codes section.

Error codes

Error codes are usually classified into the following categories:

  • Common error codes are common across all mini program's APIs.
  • API-specific error codes: are listed in the following table.

resultStatus

resultCode

resultMessage

F

ORDER_STATUS_INVALID

The order is in invalid status such as CLOSED.

F

ORDER_HAS_BEEN_CAPTURED

The cancellation does not support when the order has been captured.

F

ORDER_HAS_BEEN_REFUNDED

The cancellation does not support when the order has been refunded

F

ORDER_HAS_BEEN_VOIDED

The cancellation does not support when the order has been voided.

F

CANCEL_NOT_ALLOWED

The cancellation not allowed in agreement.

F

CANCEL_WINDOW_EXCEED

The cancellation date is beyond the period that is agreed in the contract.

F

ORDER_NOT_EXIST

The order does not exist.

F

KEY_NOT_FOUND

The key is not found.

F

CLIENT_INVALID

The client is invalid.

F

INVALID_SIGNATURE

The signature is invalid.

F

METHOD_NOT_SUPPORTED

The server does not implement the requested HTTP method.

F

MEDIA_TYPE_NOT_ACCEPTABLE

The server does not implement the media type that can be accepted by the client.

F

PARTNER_STATUS_ABNORMAL

The partner status is abnormal.

F

PARTNER_BALANCE_NOT_ENOUGH

The partner balance is not enough.

Samples

For example, a wallet user wants to purchase something in Mini Program, the merchant can call this cancel API to cancel the payment transaction within T day under these circumstances and E-Wallet will not settle payment this transaction in T+N day either.

  • when the user wants a full refund within T day.
  • when the payment result does not return for a long time.
  • ...

If the user wants a full refund or partial refund, the merchant backend should call refund API instead because the money has been settled to the merchant.

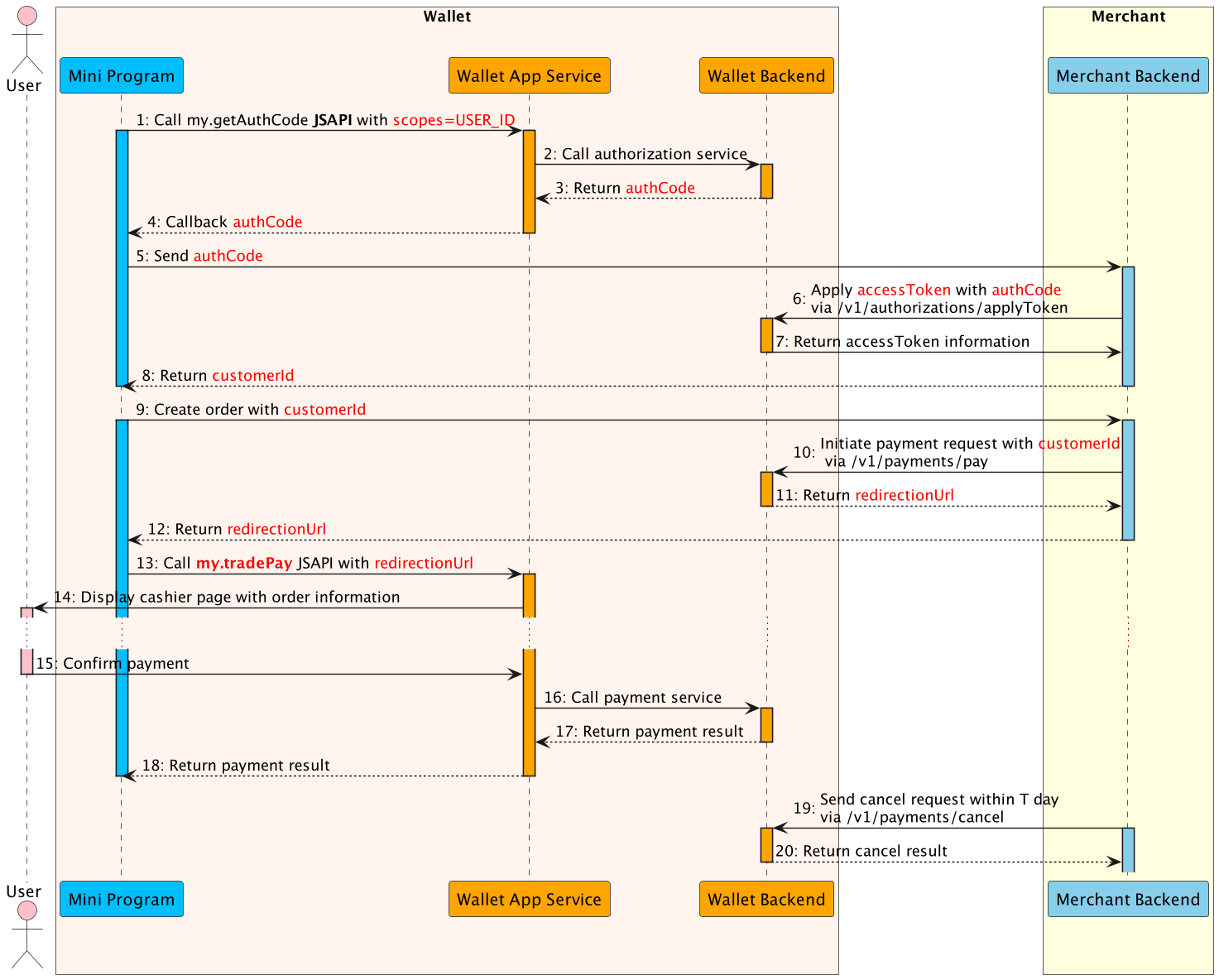

  1. The Mini Program calls this my.getAuthCode JSAPI with specific scopes(USER_ID) to request an authorization code.
  2. The E-wallet App service calls authorization service to processes the authorization information.
  3. The E-wallet backend verifies the authorization information, generates the authCode and returns.
  4. The E-wallet App service returns the authCode to the Mini Program.
  5. The Mini Program sends the authCode to the merchant backend.
  6. The merchant backend calls the applyToken API with authCode to apply the accessToken.
  7. The E-Wallet backend returns accessToken information to the merchant backend, such as customerId, accessToken, refreshToken, etc.
  8. The Mini Program creates an order with customerId.
  9. The merchant backend calls the payment API to initialte payment flow, including customerId as referenceBuyerId, paymentNotifyUrl(optional), etc.
  10. The E-Wallet backend returns payment detail information the merchant backend, such as redirectionUrl.
  11. The merchant backend passes the payment detail information to the Mini Program.
  12. The Mini Program calls the my.tradePay JSAPI with redirectionUrl to conduct the payment.
  13. The E-Wallet App Service displays the cashier page with order information, such as amount, order details, etc.
  14. The user confirms the payment in the cashier page.
  15. The E-Wallet App Service calls payment service and execute the payment process.
  16. When the payment reaches the final status, the E-wallet backend returns the payment result to the Mini Program (Step 18).
  17. The merchant backend calls the cancel API to refund the money within T day(Step 19).
  18. The E-Wallet backend returns the cancel result to the merchant backend.

Request

copy
{
 "paymentId":"2023120611121280010016600090000xxxx",
 "paymentRequestId":"202331231313123123"
}
  • paymentId is the unique Id of a payment generated by Wallet.
  • paymentRequestId is the unique Id of a payment generated by Wallet merchants.

Note:

This interface support cancels with paymentId or paymentRequestId. paymentId and paymentRequestId can not both empty, paymentId has a higher priority than paymentRequestId, which means that if you offer both paymentId and paymentRequestId, we will use paymentId and ignore paymentRequestId.

Response

copy
{
 "result": {
    "resultCode":"SUCCESS",
    "resultStatus":"S",
    "resultMessage":"Success."
 },
 "paymentId":"2023120611121280010016600090000xxxx",
 "paymentRequestId":"202331231313123123",
 "cancelTime":"2023-06-08T12:12:12+08:00"
}
  • result.resultStatus==S shows that the Wallet cancel is successful.
  • cancelTime describes the success date time of this cancel.
